Slide blister packaging is a secure and attractive retail packaging solution that combines a clear plastic blister with a printed slide card for easy product display and access. Ideal for electronics, cosmetics, tools, toys, batteries, hardware, and consumer products, this packaging protects merchandise while maximizing shelf visibility. Custom slide blister packaging can be fully personalized with your logo, product information, and eye-catching graphics to strengthen your brand and improve customer confidence. Designed for retail stores and hanging displays, slide blister packaging offers a professional presentation that helps products stand out and drive more sales.
Your time is very important to us so we have kept it short.
All Custom Sizes & Shapes
No MOQ (Starting from 50-100 Units)
Cardboard/Rigid/Kraft/Corrugated
Offset/Gravure/Digital
Gloss/Matt/Soft Touch/Aqueous/Satin
Die Cutting, Gluing, Scored, Perforation
Eco-Friendly, Recycled Boxes, Biodegradable
Flat View, 3D Mock-up, Physical Sampling
10–12 Business Days
Flat & Assembled
Dimension (L + W + H)
Quantities
Stock
Printing
Finishing
Included Options
Additional Options
Proof
Turnaround
Shipping
All Custom Sizes & Shapes
No MOQ (Starting from 50-100 Units)
Cardboard/Rigid/Kraft/Corrugated/MOPP/PET/PE
Offset/Gravure/Digital
Gloss/Matt/Soft Touch/Aqueous/Satin
Die Cutting, Gluing, Scored, Perforation
Eco-Friendly, Recycled Boxes, Biodegradable
Flat View, 3D Mock-up, Physical Sampling
10–12 Business Days
Flat & Assembled
We offer a wide range of premium finishing techniques to elevate your packaging and create a lasting impression. Choose the perfect finish to enhance your brand’s look and feel.
Add a luxurious metallic shine to your packaging with high-quality foil finishes that instantly grab attention.
Add a premium, velvet-smooth matte finish that offers a luxurious, tactile feel.
Achieve a subtle, pressed-in effect that delivers a clean and elegant look.
Give your design a raised, textured effect that adds depth and a sophisticated touch.
Create a striking visual effect with reflective finishes that shift colors under light for a premium appeal.
Highlight specific areas with a glossy coating that creates contrast and enhances key design elements.
We use cardboard material with the least environmental impact and minimizes waste generation.
Rigid is highly protective, affordable and recyclable material. These boxes provide maximum protection.
Corrugated material is easy to customize, cost effective and sustainable. It is also great for branding purposes.
Kraft paper is a strong, durable and reliable material that is widely used across many different industries.
Slide blister packaging is an effective retail packaging solution that combines excellent product visibility with strong protection. Unlike traditional heat-sealed blister packs, this packaging features a clear thermoformed plastic blister that securely holds the product while a printed card slides into place to lock everything together.
At The Pioneer Packaging, we manufacture premium custom slide blister packaging that helps businesses create retail-ready packaging with outstanding shelf appeal. Whether you’re selling electronics, cosmetics, hardware, medical products, toys, or accessories, our packaging is designed to protect your products while enhancing your brand.

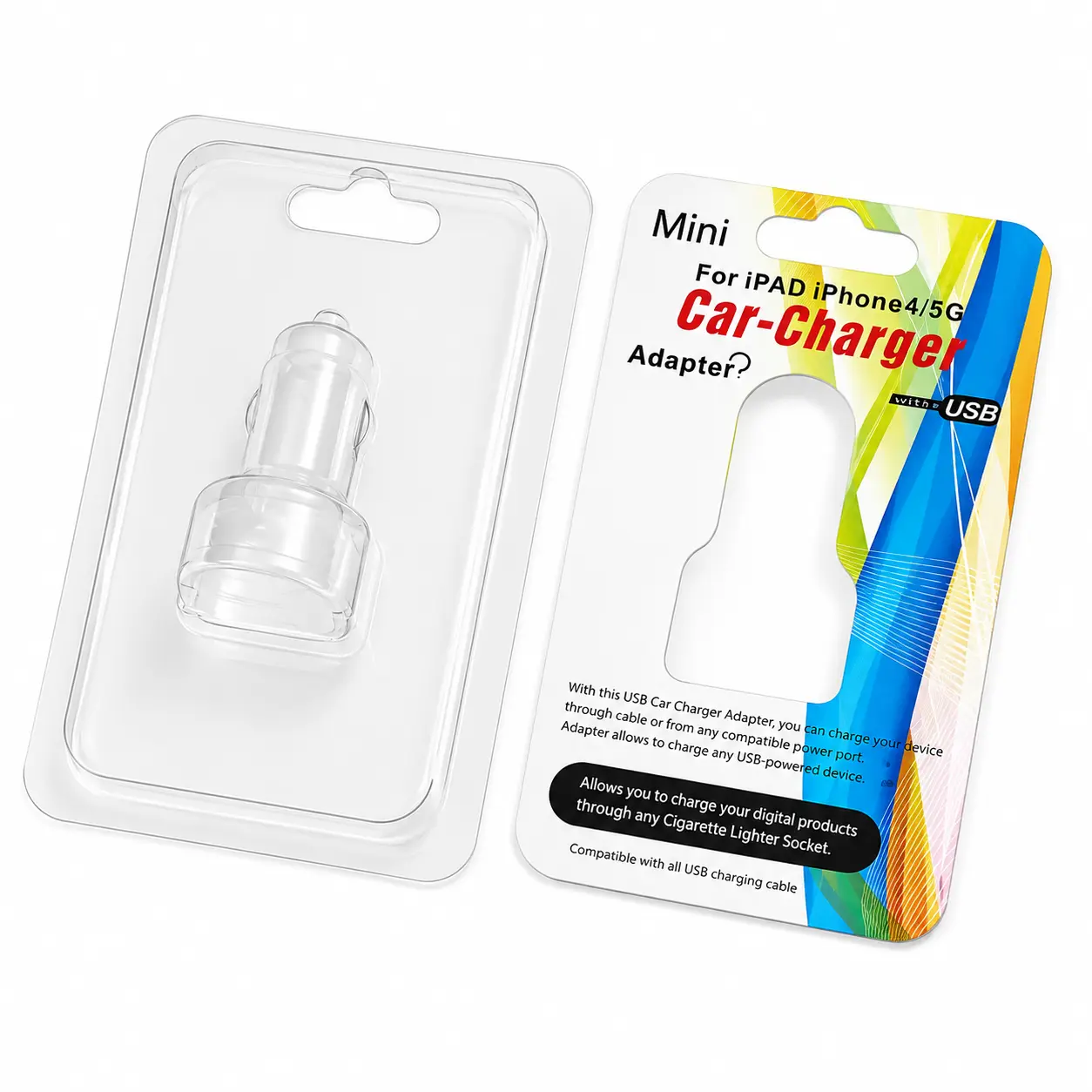

In a slide blister package, the clear plastic blister has flanged edges that wrap around three sides of an insert card, leaving one side open. The product is placed in the blister, and then a cardboard card is slid into the open side of the blister, which locks into the flanges and traps the product inside.
In plain English, a slide blister is a clear plastic bubble with three folded edges and one open side. The product goes inside the bubble. The printed card slides in through the open side. The three folded edges grip the card and hold it in place mechanically- no glue, no heat, no adhesive required.
The distinguishing feature of slide blister packaging is the inclusion of flanges that wrap around the sides of the cardboard, with an open side without a flange. This design allows the cardboard to slide in and out easily.
Custom slide blister packaging does everything standard blister packaging does: product visibility through clear plastic, peg hook retail display, brand printing on the card without the heat seal equipment that makes standard blister packaging inaccessible for small and medium brands.
Also referred to as: slide card blister packaging, folded blister card packaging, slide pack, mechanical blister, no-heat blister packaging, fold-edge blister.
Packaging is one of the first things shoppers notice.
Our custom slide blister packaging can be personalized with:
Premium printing helps create packaging that attracts attention and builds customer trust.
Custom slide pack blisters are manufactured from clear PVC or PET material in thicknesses up to 0.030 mil by vacuum and/or pressure thermoforming.
The plastic material of the blister affects clarity, cost, environmental credentials, and retail suitability. Here is exactly what each option means.
Clarity: Very high – crystal clear, excellent product visibility
Formability: Excellent – the most thermoformable of all blister plastics, handles complex cavity shapes reliably
Cost: Lowest – the most affordable blister plastic
Environmental: Least preferred – PVC contains chlorine and is difficult to recycle. Many sustainability-focused retailers and brands are moving away from PVC.
Retail acceptance: Accepted everywhere – still the most common blister plastic in the USA
Best for: Standard retail products, budget-sensitive programs, any application where cost is the primary driver and sustainability claims are not required
Clarity: Very high – equal to or slightly better than PVC
Formability: Good – slightly more rigid than PVC, handles standard cavity shapes well
Cost: Slightly higher than PVC
Environmental: Much better than PVC – PET is widely recyclable in standard curbside programs (#1 plastic recycling symbol)
Retail acceptance: Preferred by sustainability-focused retailers including Target and Whole Foods
Best for: Eco-positioned brands, products sold in sustainability-conscious retail channels, any brand making recyclability claims on the blister
Clarity: Excellent – the clearest of all blister plastics, no visible haze
Formability: Very good – easier to thermoform than standard PET, handles complex shapes better
Cost: Higher than PVC or standard PET
Environmental: Recyclable in some programs – check with your local waste management
Best for: Premium products where maximum visual clarity is the priority – cosmetics, jewelry, any product where the product visual impact through the plastic is central to the purchase decision
The printed card is the marketing surface of custom slide blister packaging. Every design decision on the card affects how the package performs on a retail peg hook.
The card must extend beyond the blister flange on all sides to give brand artwork, product information, and regulatory copy room to breathe. The standard minimum border is 15 to 20mm of card beyond the blister flange on every side.
If the blister is 70mm wide × 100mm tall, the card minimum size is 100mm wide × 130mm tall with 15mm of printable card border on each side.
The euro slot, the standard 35mm × 10mm die-cut peg hook hole, sits at the top center of the card, above the blister. Leave at least 20mm of card above the top flange edge before the euro slot so the card does not tear at the slot under the product weight.
Artwork that crosses the flange seam reads slightly differently than artwork on the open card field, so the dieline should be respected and critical type kept out of the seal zone.
The three folded flanges of a slide blister cover the card edge on three sides by approximately 8 to 12mm. Any design element like logo, product name, key benefit that falls under a flange is hidden when the card is in the blister. Keep all critical design elements at least 15mm inside the card edge on the three flange sides.
The back of the card is the most information-dense surface: ingredient lists, instructions, barcodes, allergen statements, manufacturer address. The UPC barcode goes on the back of the card in a flat area never under the blister where the plastic surface would distort the scanner read.
Print methods: Digital CMYK for low to medium quantities – full photographic color, no plate costs. Offset lithography for high volume, Pantone-accurate, consistent across large runs. Flexographic for high-volume spot color programs.
Finishes: Gloss lamination – vibrant, high-shine, colors pop on the retail peg hook wall. Matte lamination – sophisticated, premium, stands out from gloss-heavy competitors. Soft-touch coating – velvety, signals premium product quality. Spot UV – logo and key visual pop against a matte background. Aqueous coating – protective, recyclable, the right choice for sustainability claims
Low-volume needs often use a simple style blister, especially when introducing a new product or testing the market. Slide blister packaging is the most accessible blister format for brands that cannot justify heat seal equipment investment. A startup can order 200 custom slide blisters, fill them by hand, and have a professional retail-ready package without a single piece of equipment beyond a staple gun.
Slide blisters are often seen in retail for items like small toys, hobby accessories, and craft supplies. The product is visible through the clear plastic, important for toys where the child needs to see the product before the parent buys it. The slide format lets a toy brand update card designs frequently for seasonal and character tie-in promotions without a full production retooling.
We custom design and manufacture slide pack blisters used for packaging a wide range of consumer products from batteries to tools to sporting goods. Hardware brands love the slide format for its reusability; customers often store remaining fasteners, drill bits, or small components in the original blister after partial use.

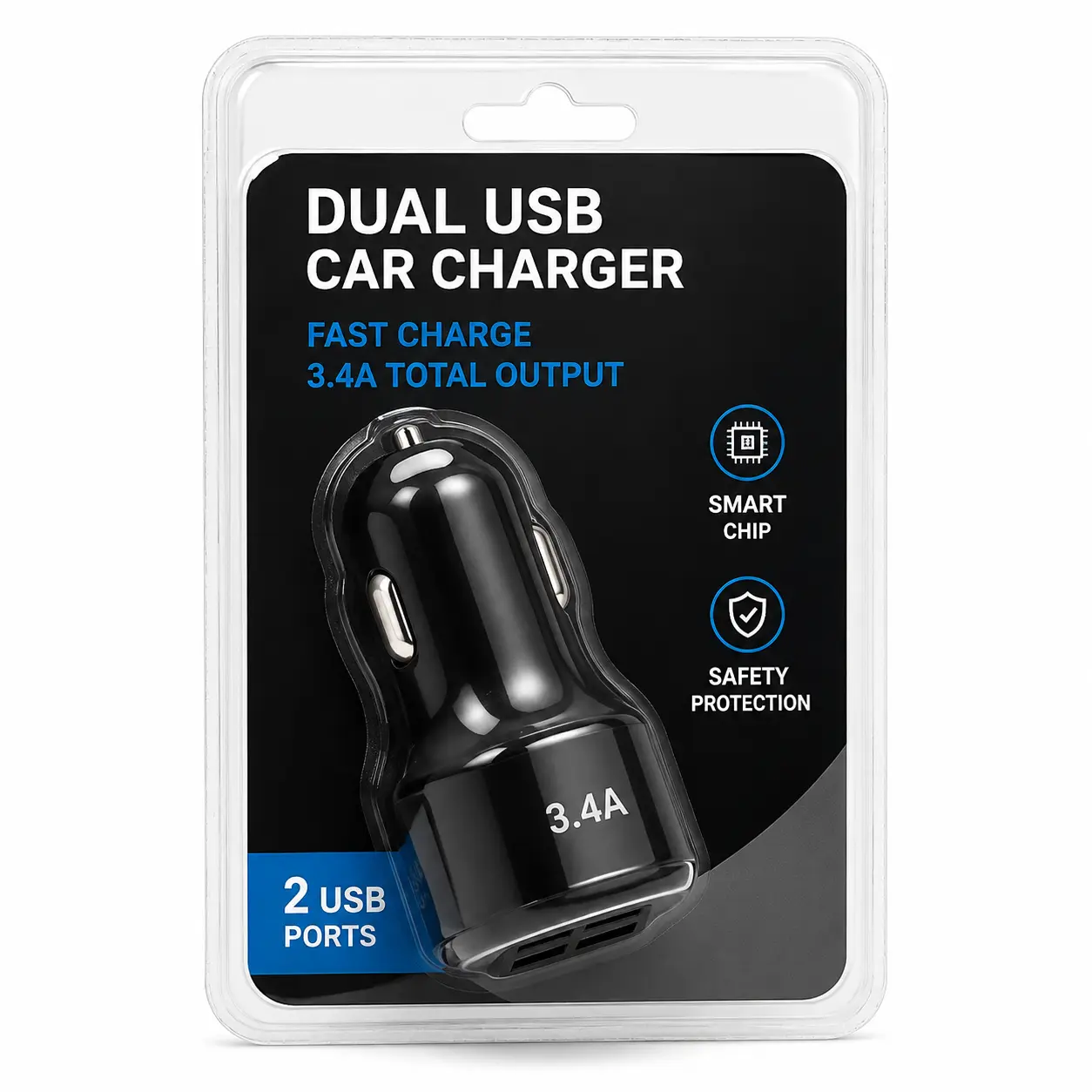

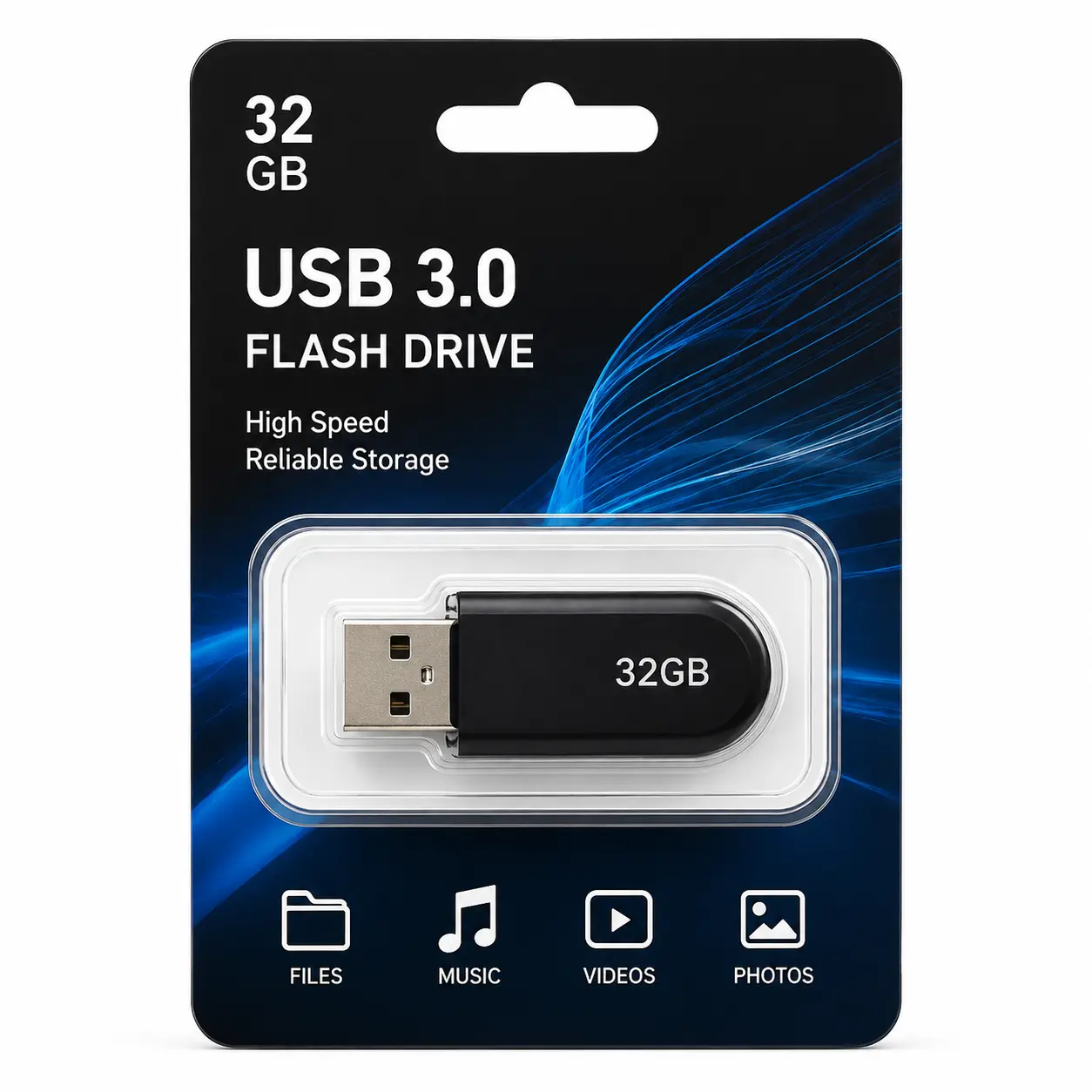

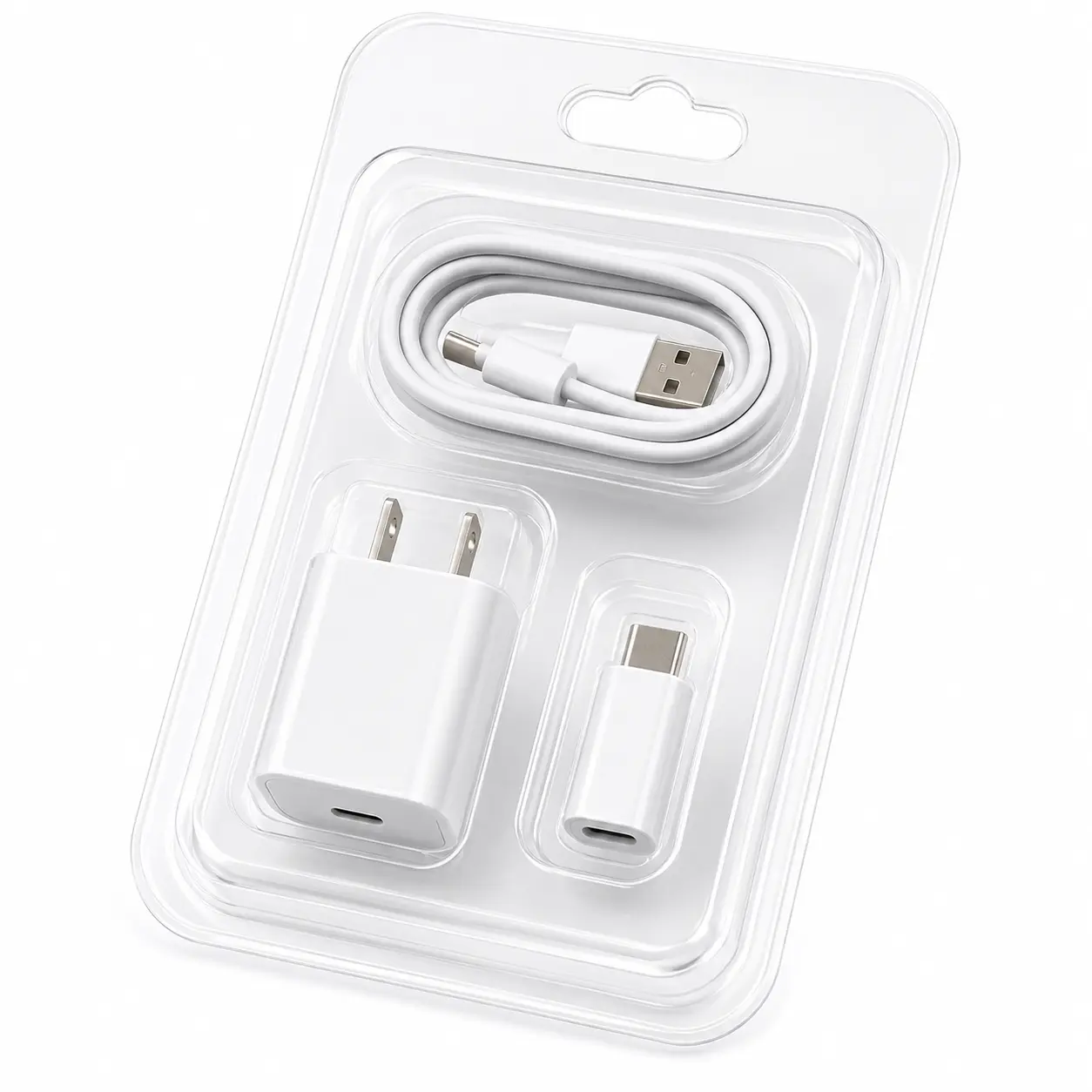

Small tech accessories like adapters, cables, memory cards, earbuds, and small gadgets use slide blister packaging for peg hook display in electronics retail. The clear blister shows the product. The card carries the brand. The slide format lets the brand update the card for new retail accounts or updated compliance information without retooling the blister.
Travel-size personal care products, nail care accessories, makeup tools, and small beauty gadgets use slide card blister packaging for pharmacy and specialty retail peg hook display. Matte lamination or soft-touch coating on the card differentiates premium brands from the standard gloss-heavy competition on a crowded peg hook wall.
Beads, buttons, small craft components, and art supplies use slide blisters because the reusable format fits the product’s use pattern: customers open, use some components, and slide the card back in to store the rest in the original package.
PVC-free blister option: Specify PET or PETG plastic instead of PVC – recyclable in standard curbside programs (#1 plastic), preferred by major retailers with sustainability procurement requirements.
FSC-certified cardboard: All SBS, recycled board, and kraft card options are available with Forest Stewardship Council chain-of-custody certification.
Recycled content cardboard: Post-consumer recycled fiber content available in the printed card reduces virgin material use without compromising print quality.
Aqueous coating on card (recyclable): Aqueous-coated cards are recyclable in standard paper streams after the blister is separated. Specify aqueous coating over plastic lamination for brands making card recyclability claims.
Reusability as a sustainability benefit: Slide blister packaging’s reusable format reduces single-use packaging waste; the consumer keeps and reuses the blister and card rather than discarding both after first opening. For brands with sustainability messaging, this is a concrete, verifiable packaging behavior rather than a vague environmental claim.
Water-based inks Standard across all print methods – no VOC output and full recyclability compatibility.
Blister plastic material: PVC (clear, most affordable), PET (PVC-free, recyclable), PETG (maximum clarity, premium)
Blister thickness: 0.010 to 0.030 mil – thicker for heavier products, thinner for lightweight products
Cavity engineering: 0.5 mm clearance rule – contoured to product shape, support ribs for delicate surfaces, anti-static coating for high-gloss products
Security reinforcement: staple, clear tape, branded tape, plastic lock tab or none (display only)
Card material: SBS white paperboard (18pt-24pt), clay-coated recycled board (CRB), kraft paperboard
Card size: Fully custom – minimum 15 to 20mm beyond blister flange on all sides, euro slot at top center
Euro slot: Standard 35mm × 10mm for peg hook display or custom slot size for specific retailer peg systems
Print method: Digital CMYK (low-medium volume), offset lithography (high volume), flexographic (high-volume spot color)
Card finishes: Gloss lamination, matte lamination, soft-touch coating, spot UV, hot foil stamping, embossing, debossing, aqueous coating (recyclable)
Sustainability: PVC-free PET or PETG blister, FSC-certified cardboard, recycled CRB card, water-based inks, aqueous coating
Turnaround: 10-12 business days from art approval
Shipping: Free across the USA – ships flat-packed
At The Pioneer Packaging, we manufacture high-quality slide card blister packaging that combines product protection, retail-ready presentation, and premium printing. Every package is engineered to showcase your products while strengthening your brand and improving the customer shopping experience.
Whether you’re launching a new retail product or expanding your product line, we create custom slide blister packaging tailored to your exact requirements.
Slide blister packaging uses a clear thermoformed plastic blister and a printed slide card that locks the product in place without permanent sealing.
Slide card blister packaging is a type of blister packaging where the printed backing card slides into the plastic blister to securely hold the product while providing excellent retail presentation.
Yes. We offer complete customization with logos, branding, product information, QR codes, barcodes, and promotional graphics.
It is commonly used for electronics, cosmetics, batteries, hardware, tools, medical devices, toys, stationery, and retail accessories.
Yes. We provide wholesale manufacturing for businesses of all sizes with competitive pricing and fast production.
Absolutely. Every blister package is manufactured according to your product’s exact dimensions.
Yes. We offer recyclable PET and RPET blister materials, FSC-certified paperboard, and environmentally responsible printing solutions.
